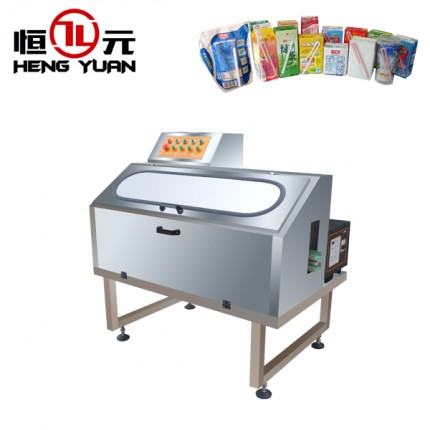

TG-II straw applicator machine

Description

Reviews

1. The TG-1 straw applicator can be used to paste the straw on the surface of various beverages to improve the packaging grade of the beverage and increase the ease of consumption.

2. It is especially suitable for pipette sticking on the surface of cartons, plastic cups and plastic bottles.

3. The machine adopts PLC automatic control system, which can automatically complete the processes of product conveying, straw conveying, straw cutting, product gluing, pipe sticking, etc.

4. It is reliable in operation and reaches the international level of similar products.



Model

TG-II

Max Capacity

12000 pcs/h

Voltage

380V( 50Hz, 3Phase) or 220v(Customized)

Power

4.5kw

Working pressure

0.4-0.6mpa

Feeding way

Single row

Conveyor Belt Width

55mm

Max  air consumption

100 liters/minute

Control system

PLC

Operation

Touch screen

Machine Dimension

3200*70*1550mm

Machine weight

300kg

Warranty

1 year

Certification

ISO9001:2008,  CQC, CE
